Attach the synchronised belts to the recognised anchor points on the front of the wheelchair.
PAWRS 3 – Power Assisted Wheelchair Restraint System

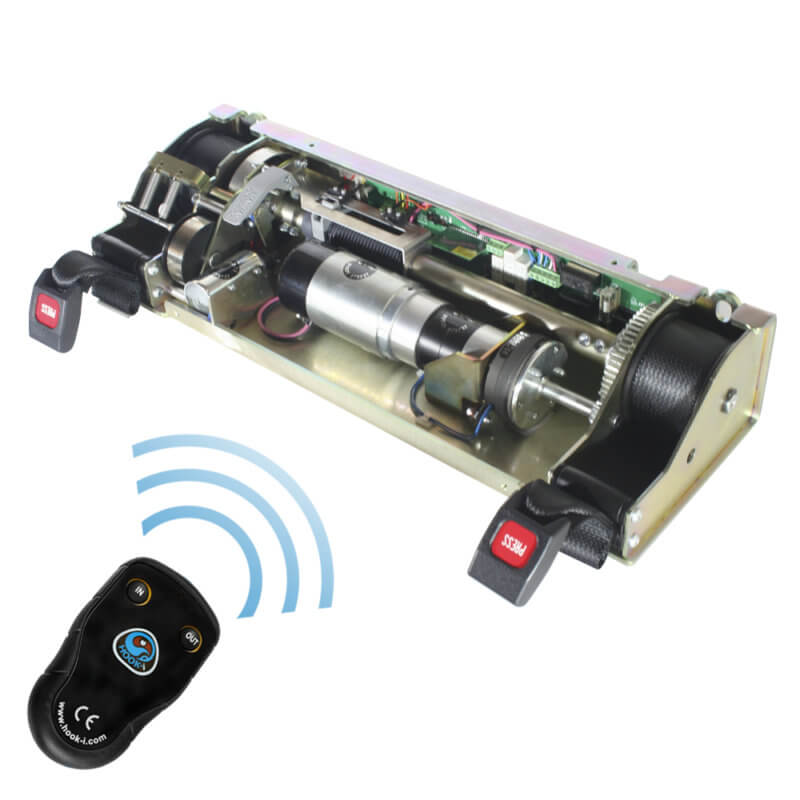

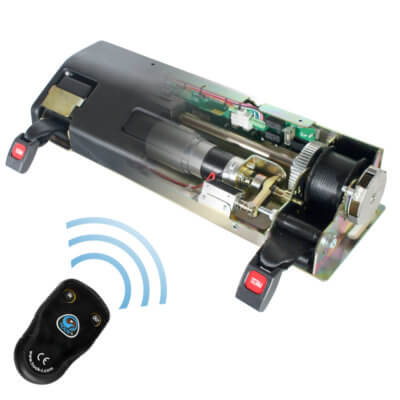

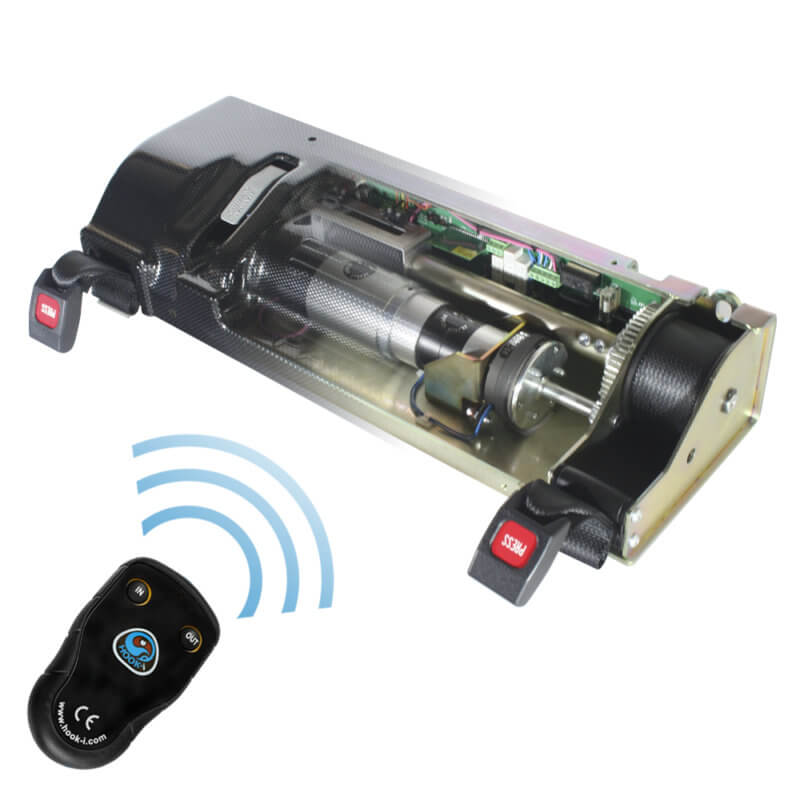

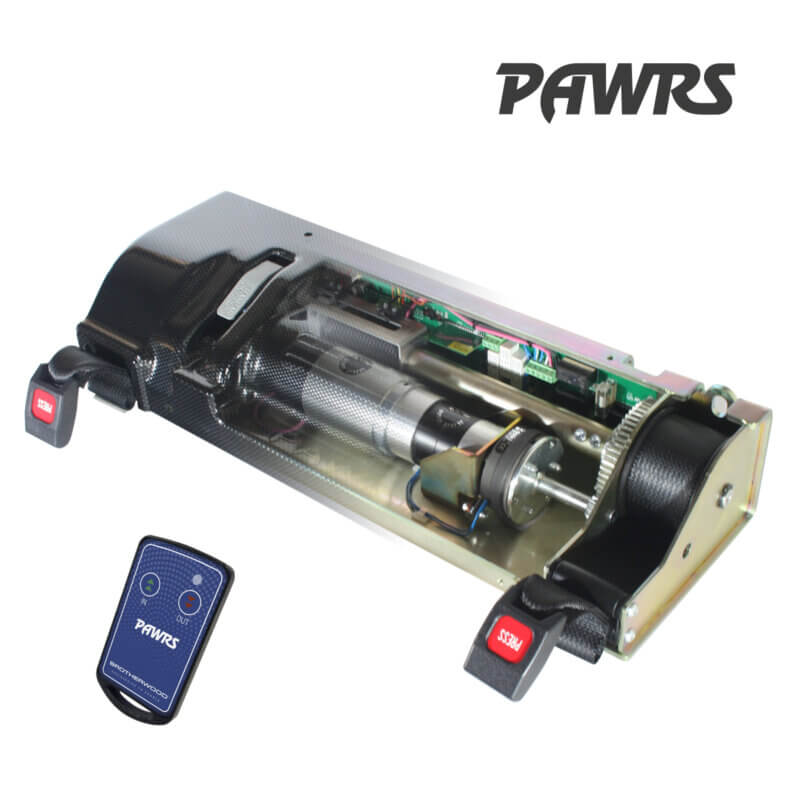

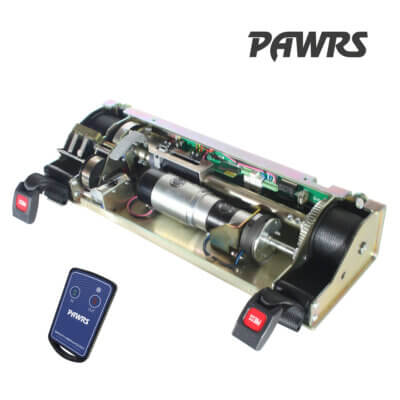

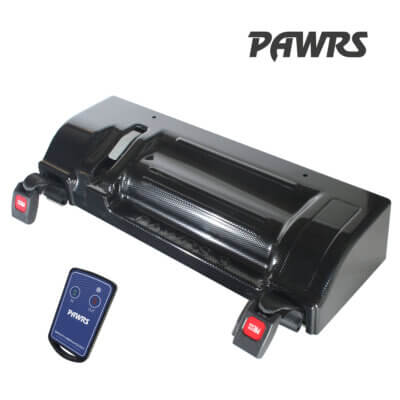

The Hook-i PAWRS is an ISO:10542 Compliant combined wheelchair winch and front restraint system to assist in the loading of a wheelchair and passenger into a rear ramp entry Wheelchair Accessible Vehicle.
It has been successfully dynamically tested with heavy wheelchairs up to 190kg. The PAWRS is a 12V dc powered device that has been endurance cycle tested by drawing a 250kg loaded surrogate wheelchair up a 15° ramp. On lesser inclines it is capable of pulling greater loads.
As well as being able to handle higher wheelchair weights than most ‘traditional’ 2-part winch and restraint methods, PAWRS offers greater convenience. No longer is it necessary to squeeze between the seats and the wheelchair to disconnect the winch and connect the front restraints – an operation which can be quite undignified for the wheelchair user. As a result the whole loading sequence is much faster and simpler, effectively providing convenience and safety.
Effortless 3-Step Operation
NO PUSHING • NO STEERING • NO HASSLE
By combining the functions of an electric wheelchair winch together with a wheelchair restraint system, PAWRS effectively halves the traditional loading process into one simple, fast, easy-to-use device.
Simply withdraw the synchronised belts, fitted with your choice of attachments, and attach to the restraint points on the front of the wheelchair. The wireless remote can then be used to load the wheelchair and passenger into the vehicle at a steady pace, with no risk of roll-back.
REMOTE-CONTROL OPERATION
Although ‘hands-free’ loading is possible, for best practise we recommend that the carer is always positioned behind the wheelchair when loading.
Once inside the vehicle there is no need to attach further front restraints – PAWRS locks in place to secure wheelchairs up to 190kg safely.
Simply attach your choice of rear restraints to complete a safe, proven 4-point restraint system – peace of mind for wheelchair user and carer alike.
Use the PAWRS power winch function utilising the remote control. The winch function is endurance tested to pull a 250kg load up a 15 degree ramp.
The attendant should remain closely behind the wheelchair as PAWRS pulls the wheelchair and passenger up the ramp.
PAWRS acts as a front restraint for wheelchairs up to 190kg, leaving just the rear restraints to be attached.
SPECIFICATION
| Depth | 188mm |
|---|---|
| Width | 560mm |
| Height | 105mm |
| Belt Feed | Synchronised powered belt feed in and out |
| Winch Capacity | Endurance tested to pull 250kg up 15° ramp |
| Restraint Capacity | 190kg |
| Webbing | Up to 3.66 long webbing |
| Retractor | Remote controlled heavy duty retractor |
| Auto Stop to Prevent Overload | Yes |

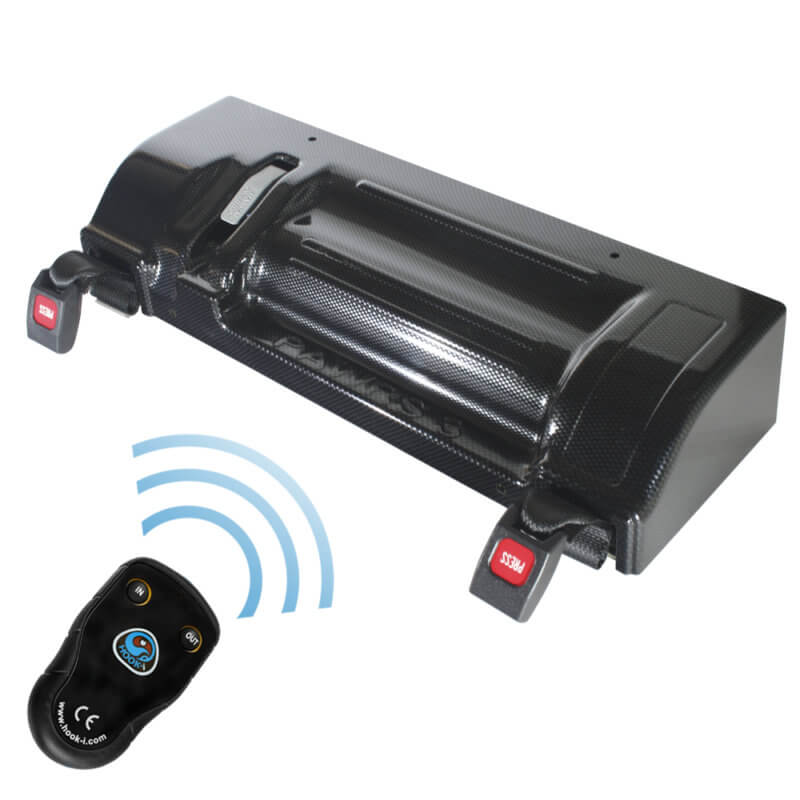

| Cover | Stylish vac-formed carbon fibre finish cover |
| Solenoid Release | Yes |
| Manual Release in Case of Electrical Failure | Yes |
| Corrosion Testing Standard | ISO 10542 |
| Base Plate | Electro plated solid mild steel |
| Motor | 12V Motor with Planetary Gearbox |
| Printed Circuit Board | Yes |
| Electric Reels | compatible with ‘Karabiner’ / ‘Buckle & Tongue’ restraints |
| Safety Cut-Out | After 5 minutes switched on |
