Toyota Proace Wheelchair Accessible Vehicle

TIGON

Toyota Proace Verso

Days Out Are Back.



The Brotherwood® ‘Tigon’ Wheelchair Accessible Toyota Proace Verso conversion provides the space and versatility a family needs.

Toyota Proace Wheelchair Accessible vehicle
Toyota WAV Vehicle

AT A GLANCE

Highlights

  • Flat, Level Lowered Floor Conversion
  • Inclusive, Central Wheelchair Location Between Two Rear Seats
  • PAWRS Powered Loading System
  • Optional Air Suspension for a Smooth Ride and Low Ramp Angle
  • Tested to Carry Wheelchairs up to 200kg
Toyota Proace Wheelchair Accessible Vehicle

ACCESSIBILITY

Easy Access

1. COUNTERBALANCED RAMP

Our custom-built, lightweight ramp is counterbalanced, so that it can be lifted with minimal effort by foot or hand. Long life fittings ensure minimal maintenance and reliable performance for years to come. Finished with a high-traction surface that makes access easy for manual or power chairs.

The optional VB-FullAir air suspension can also be lowered, reducing the angle of the access ramp to just 9o for easier wheelchair access.

Toyota Proace Wheelchair Accessible Vehicle
Toyota Proace WAV lowered floor
Toyota Proace Wheelchair

COMFORT

Flat, Level Lowered Floor

1. FLAT, LEVEL LOWERED FLOOR

The low, level floor of a Brotherwood® conversion offers a stable, comfortable, natural seating position, for better visibility, social inclusion and ride quality. The Tigon offers 56½ inches of internal headroom with great view out of the windscreen and windows – even taller travellers will share a similar eye-level to the driver and passengers.

LEARN MORE

Travelling centrally within the vehicle between two rear passenger seats, the wheelchair user enjoys an inclusive and social experience.

RIDE QUALITY

Optional Air Suspension

1. VB-FULLAIR SYSTEM

Exclusive to Brotherwood®, the optional VB-FullAir air suspension system replaces the traditional rear spring setup with a full air suspension system that filters out unevenness in the road surface, thereby increasing ride comfort.

The VB-FullAir system is also self-levelling, ensuring a consistent ride height and floor level at any load weight or number of passengers. The air suspension system can be lowered for even easier loading with a ramp angle of just 9º.

Toyota Proace WAV Loading
Toyota Proace Wheelchair Restraints

SAFETY

Heavy Duty Restraints

1. 200KG WHEELCHAIR CAPACITY

The Brotherwood® Tigon can safely transport the heaviest of powered wheelchairs, and is robustly engineered to restrain large wheelchairs up to 200kg with ease.

The huge payload capacity is further enhanced by the STORQ rear restraint system, which automatically tension the rear restraints, for even faster securement of the wheelchair.

LUXURY

High Specification

  • Toyota Skyview® panoramic roof
  • Auto headlights & Auto wipers
  • Power adjustable heated front seats with massage function
  • 7” Toyota Pro-Touch with navigation
  • Automatic air conditioning
  • Rear passenger air conditioning
  • Rear Parking Sensors
  • Premium surround sound system
Toyota WAV Interior
Toyota Proace Verso WAV 360

SEE INSIDE

EXPLORE IN 360º

KEY MEASUREMENTS

Dimensions

  mm inches
Entry Height 1475 58
Max. Internal Headroom 1435 56½
Maximum Armrest Width 810 32
Lowered Floor Length 2285 90
Lowered Floor Width 835 32.8
Lowered Floor Width Width at ‘Blisters’ 860 34
Entry Width 800 31½
Access Ramp Length 1075 42.3
Access Ramp Width 736 29
Access Ramp Angle Standard Suspension 12º
Access Ramp Angle Air Suspension
Exterior Length 4959 195
Exterior Width exc. Mirrors 1920 75½
Exterior Height 1899 74¾

Internal headroom may vary depending on wheelchair travelling position.

UK Type Approval No. g11*2018/858*00129
Stage 1 (OEM) Type Approval No. e2*2007/46*0537

Stage 1 Manufacturer: Toyota Motor Europe NV/SA, Bourgetlaan 60, 1140 Brussels, Belgium

CASE STUDIES

Client Stories

Clever Design, Innovation and Craftsmanship Deliver an Outstanding Solution for the Edwards Family

Having accrued decades of experience in the field of Wheelchair Accessible Vehicles (WAVs) - owning [...]

READ MORE

EXPLORE IN DETAIL

Features

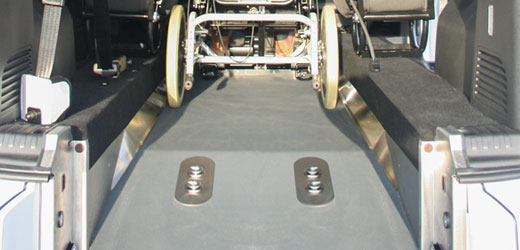

Toyota WAV Lowered Floor

Low, Flat, Level Floor


A steeply sloping floor, sitting too high or far back in the vehicle can not only be isolating, but also an uncomfortable ride for the wheelchair user. The level, lowered floor of a Brotherwood® conversion offers a stable, comfortable, natural seating position, for better visibility, inclusion and ride quality.
Toyota WAV Headroom

Spacious Headroom


For a better view out through the windscreen and front windows. Reducing the centre of gravity for the wheelchair user also reduces the sensation of ‘body-roll’ when cornering, whilst travelling on a completely level surface promotes optimal posture for the wheelchair occupant.

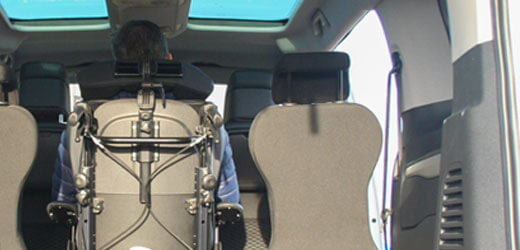

Sculptured Seat Profile


Our unique seats enable wheelchair users to travel inclusively next to the rear passengers, making conversation easy and closer to the driver for a smoother ride. The seats are trim matched to the original seats for a flawless factory finish.

STORQ System


STORQ automatically applies extra tension to the wheelchair restraints – ideal for those with limited grip or dexterity who might struggle with traditional buckles. By ensuring the rear restraints are properly tensioned, the wheelchair user enjoys a safer, more stable ride.

Hook-i PAWRS


The Hook-i PAWRS is a remote-controlled, powered front restraint system, to assist loading a wheelchair and passenger. No pushing required, simply attach the restraints and press the remote control for effortless loading of combined wheelchair and passenger weights up to 250kg.

Counterbalanced Ramp


Our custom-built, lightweight ramp is counterbalanced, so that it can be lifted with minimal effort by foot or hand. The angle is shallow to enable easy loading , while long life fittings ensure minimal maintenance and reliable performance for years to come. Finished with a high-traction surface that makes access easy for manual or power chairs.
Toyota Features

Thoughtful Features


Proace Verso is designed with ease in mind through a range of advanced features. Hill-start Assist Control (HAC) and Vehicle Stability Control (VSC) help maintain safe driving conditions while sliding side doors and a rear tailgate provides everyday practicality.
Toyota Multimedia

Multimedia Connectivity


Proace Verso puts all the information and media you need at your fingertips while smartphone integration comes via Apple CarPlay™ and Android Auto™. Proace Verso comes with Bluetooth and USB allowing you to listen to your music when you want on the move.
Panoramic Sunroof

Premium Pack


Premium Pack (full leather seats, Skyview® roof, Premium surround sound system) is included as standard on all TIGON models. The Toyota Skyview® roof adds an even more premium feel to the interior. This large panoramic glass roof brightens the cabin with warm, natural light.

Pro-Touch Multimedia


Pro-Touch multimedia system with navigation system, complete with Connected Services for 10 years. Features include: real-time traffic, TomTom places, weather, parking, fuel prices and danger zone (speed camera) alerts, as well as the convenience of Bluetooth® calls and multimedia.

Adaptive Cruise Control


Maintains a safe distance to the vehicle ahead by adjusting driving speed automatically. This system is particularly useful for heavy, fluid traffic that would involve frequent changes of speed.
Toyota Safety Sense

Forward Collision Warning


Forward Collision Warning alerts the driver to react to a situation of risk of imminent collision. A visual and audible warning is emitted. This action comes just before AEB is triggered.
Toyota Safety Sense

Pre-Collision System


Pre-Collision System reduces injury to passengers: 0–18 mph: prevents collision with moving or fixed obstacles, including pedestrians; above 18 mph: speed reduction before impact. System automatically co-ordinated with Autonomous Emergency Braking (AEB).
pas2012

PAS2012-1:2012 Compliant


PAS is developed according to guidelines set out by the BSI. It has been adopted by the Motability Scheme, to ensure best practise in WAV design, good access, structural integrity, rigorous safety testing, and good customer service.Read more about PAS here.
UTAC VCA

ECWV Type Approval Under Application


Brotherwood® WAVs meet the highest standards. WAVS with ECWVTA have undergone rigorous testing to ensure high levels of performance and safety, giving you complete peace of mind.Read more about European Community Whole Vehicle Type Approval here.

FACTS & FIGURES

Specification & Pricing

Vivid White
Rich Oak Metallic
Black Opal Metallic
Silver Shadow Metallic
Falcon Grey Metallic

Family + Premium Pack

Standard specification:

  • Body-coloured door handles, door mirrors, front bumper, rear bumper
  • Midnight tinted (70%) privacy glass on rear windows
  • Smart Entry & Push button Start
  • Toyota Skyview® panoramic roof
  • Auto headlights & Auto wipers
  • Auto folding Power-adjustable heated door mirrors
  • Opening window on rear tailgate
  • Power-sliding, reclining & height-adjustable driver’s and front passenger seats
  • Heated driver’s and front passenger seats with Massage function
  • Airbags
  • Tyre Pressure Warning System (TPWS)
  • Intrusion alarm, Motion sensor alarm, Anti-tamper alarm
  • Adjustable Speed Limiter (ASL)
  • Stop/Start engine
  • Toyota Safety Sense (TSS)
  • 7” Toyota Pro-Touch with navigation
  • Premium Pack (full leather seats, panoramic roof, Premium surround sound system)
  • Automatic air conditioning
  • Rear passenger air conditioning
  • Rear Parking Sensors
  • Coloured TFT multi-information display
  • Auto-dimming rear view mirror & Conversation mirror
  • Driver’s seat & front passenger seat armrest
  • Adjustable lumbar support on driver’s seat
  • Front power windows
  • Auto up & down function on all power windows
  • Fold-up tables in back of front seats
  • Front cup holders
  • Bluetooth® connectivity
  • 7” Toyota Pro-Touch multimedia system
  • Digital Audio Broadcast (DAB)
  • Premium surround sound system
  • 9 speakers
  • Aux-in & USB connector
  • Multi-reflector halogen headlights
  • Front fog lights & Cornering lights
  • Adaptive Cruise Control
  • 5-Star Euro NCAP safety rating
  • Pre-Collision System with Pedestrian Detection
  • Vehicle Stability Control (VSC)
  • Hill-start Assist Control (HAC)
  • Anti-lock Braking System (ABS) with Electronic Brake force Distribution (EBD) & Brake Assist (BA)

Nationwide Customer Support

For complete peace of mind we offer an annual Safety Assurance Programme. A qualified service engineer will visit at a time and place that suits you, to perform a full 15-point conversion safety inspection, including restraints, ramp, safety belts and more to ensure safe operation of your conversion.

For Motability clients an annual inspection is included at no cost for the first 5 Years of the Motability agreement. For all other clients the first annual visit is free of charge. You can then choose to book one or more subsequent annual visits.

WAV Safety Check

What’s Checked:

  • Ramp Grip Tape
  • Ramp Rubbers
  • Floor Covering & Carpets
  • Front, Rear and Occupant Restraints
  • Rear Restraints
  • Occupant Restraints
  • Cut-Off Switch
  • Front restraint
  • Power Switch
  • Tailgate Struts
  • Remote Control
  • Ratchin / PAWRS Operation
  • Ramp Operation
  • Tyre Wear
  • Oil Level Check
  • Coolant Level Check

Pricing

Annual Safety Inspection Price Motability Clients
First Year Annual Inspection Included Included for first 5 Years
1 Year Annual Inspection Plan £200.00 Included for first 5 Years
2 Year Annual Inspection Plan £350.00 Included for first 5 Years
3 Year Annual Inspection Plan £450.00 Included for first 5 Years

If discount is applied to your order we reserve the right to rescind the offer to a free first year service.

VERIFIED OWNERS

Owner Reviews

Contact the UK’s WAV Specialists

For more information, or to book a FREE no-obligation home demonstration call today on:

0330 174 1884 (FREEPHONE)



  • No Pressure or Obligation
  • Friendly, Experienced Advisors
  • Comprehensive Needs Assessment
